OPW IN-LINE BREAKAWA Coupling ILB-5緊急拉斷閥
OPW ILB-5 In-Line Breakaway Coupling for Heavy Duty Truck/Bus refueling applications
進口NGV CNG 1寸緊急拉斷閥型號ILB-5
OPW在線聯接切斷裝置ILB-5
- 重型卡車/巴士用
管線拉斷閥ILB-5 重型卡車和巴士用。OPW公司開發了這種適用于重載卡車和公交巴士NGV燃料補加操作的在線聯接切斷裝置。在不同進口壓力條件下這種裝置都能可靠工作。OPW has developed an in-line
breakaway that can be used in
heavy-duty truck and bus NGV refueling
applications. This unit will function
consistently, independent of the
inlet pressure.

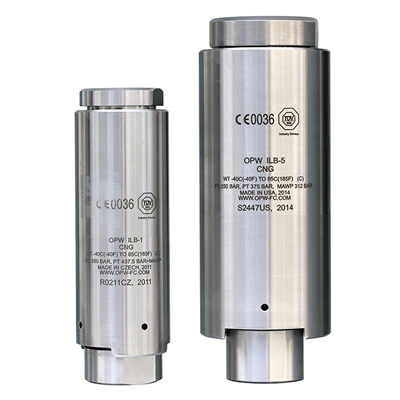

OPW In-Line Breakaway Coupling ILB-5 - Heavy-Duty Truck/Bus
OPW ILB-5 Heavy Duty CNG Truck & Bus In-Line Breakaway Coupling
OPW ILB-5 拉斷閥 - 專為高壓NGV類用途設計
結構材質
主體：不銹鋼
內部構件：不銹鋼
密封：專為高壓NGV類用途設計的特殊配方聚合物和彈性材料
性能特點
- 耐用、抗腐蝕的材質結構 -不銹鋼和特殊鍍復的鋼材結構提高了在嚴酷環境條件下使用的耐用性和抗腐蝕能力。
- 可重新聯接使用的設計結構 – 各項組件可以重復使用，從而節約了維修費用。
- 新型的閥門系統 – 這種管線切斷裝置中的密封系統可-大限度地減少在發生車輛意外移動離開情況下泄放出來的氣體量。
- 高流量/超快灌裝能力 – 這是OPW公司所能提供的-大流量的管路斷開裝置。它能為大型油箱車輛提供快速灌裝能力。其內部密封件是專門設計以符合快速NGV灌裝的要求的。
- 便于安裝 – 在線管路切斷裝置中設計了SAE-10 O形圈，很容易安裝到加油機和噴嘴之間的管路中。
- 每件產品單獨進行泄漏測試和檢驗，并附有可跟蹤的系列號
- 聯接斷開時的受力值 – 150磅力（668牛頓）
規格：
-低流量：3000磅/吋2壓力下時為5500標準呎3/分鐘
溫度范圍：-40℉-185℉ (-40℃-85℃)
重量：5磅（2.26千克）
Cv：3.6
設計壓力：5000磅/吋2（345巴）

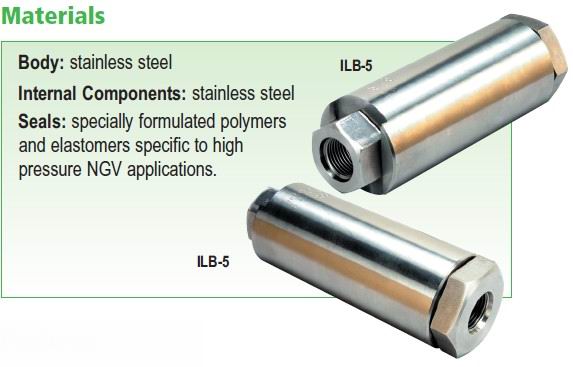

材質：
閥體Body: stainless steel不銹鋼
Internal Components: stainless steel
密封Seals: specially formulated polymers
and elastomers specific to high
pressure NGV applications.
ILB-5 規格參數：
◆ Durable, Corrosion-Resistant
Construction - Stainless steel and
specially plated steel construction
provide improved durability and
corrosion resistance in harsh
environments.
◆ Reconnectable Design - Allows the
component to be reused, reducing
maintenance costs.
◆ Innovative Valve System - The
sealing system in this breakaway
minimizes the amount of vent gas
released during a drive-away incident.
◆ High-Flow/Super Fast Fill Capacity -
This is OPW's fastest flowing
breakaway. This breakaway will
provide quick fueling of large storage
vehicles. Internal seals are specifically
designed to meet the demands of
fast-fill NGV fueling.
◆ Easy Installation - The in-line
breakaway has SAE-10 O-ring fittings
for easy installation in line between the
dispenser and nozzle.
◆ Individually Inspected, Leak and
Breakaway Tested, with
Traceable Serial Numbers.
◆ Disconnection Force - 150 lbs. (668 N).
ILB-5 Specifications:
Min. Flow Rate: 5500 SCFM @ 3000 psid
Temperature Range: -40° F to 185° F
(-40° C to 85° C)
Weight: 5 lbs (2.26kg)
Cv: 3.6
Design Pressure: 5000 psi (345 Bar)

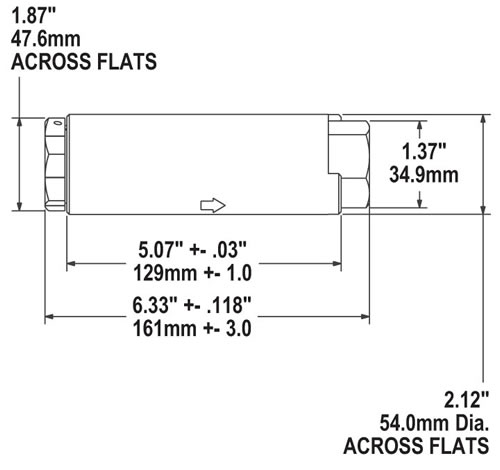

◆ Dimensions產品尺寸：
◆ILB-5 Ordering Specifications
Recommended to be used with the CC250, CC300, CC600 and CT1000 Series NGV-1 CNG Nozzles
Product No. |
Inlet Thread Size |
Outlet Thread Size |
Max. Allowable |
Service Pressure |
ILB-5 |
SAE - 6, 9/16 - 18 UNF (female) |
SAE - 6, 9/16 - 18 UNF (female) |
4500 psi (P36) |
310 bar |
|
