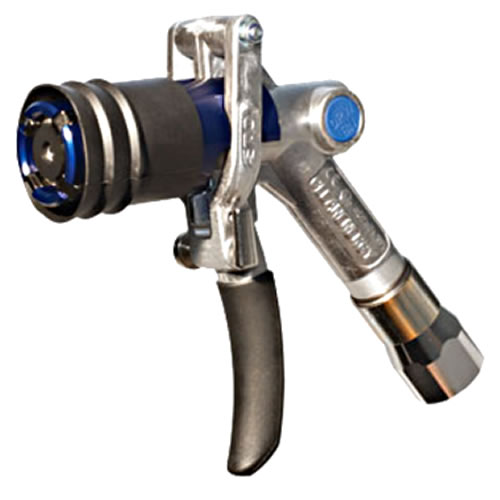

OPW OT300 系列LPG自動加氣槍
Autogas OT300 and OTA-300A Series LPG Nozzle
LPG加氣槍
應用行業：交通
OT300加氣槍 OPW OT300 系列LPG自動加氣槍
OT300是OPW公司意大利接口的B/N加氣槍，入口是1英寸的NPT螺紋。 所有OPW B/N型LPG加氣槍都嚴格符合相關行業規范對加氣設備安全和效率的要求。The OPW Autogas OTA-300 and OTA-300A are designed for the Italian-Type coupling.Nozzle inlet has 1" BSPP threads.
OTA-300 and OTA 300A Series LPG Nozzle
T300加氣槍 OPW OT300 系列LPG自動加氣槍
主要性能特點
簡單順暢的造作：整個加氣過程只需通過勾動扳手即可順利將氣槍與插座耦合。
自鎖功能：在加氣過程中，氣槍會被牢固的鎖在插座上，除非推開扳手上的放氣扳機。
人性化設計： 絕緣的護套很好的保護了造作者免受高速流動的LP氣體產生的溫度傷害。特殊的設計使槍與插座耦合力降低到-低。
持久的壽命設計：在惡劣的加氣環境下，具有承壓性能的銅、鋁、不銹鋼材質保證了結構優良的抗腐蝕性
方便使用：和具有360°單平面旋轉的旋轉接頭一起使用，造作將更加方便。
安全使用：只有確定與合適的接頭連接，氣槍才會開始加氣，一經連接，不會輕易松開，直至造作者進行松開操作。
每個產品都經過嚴格的氣密測試，并打印對應的檢驗編號。
可更換的橡膠蓋：使被排放的LP氣體從操作扳手的邊側排出。
Features & Benefits
- User Friendly Single-Action Operation – Entire fueling operation is initiated by simply engaging nozzle to the receptacle with a single squeeze of the hand.
- Hammer-Lock Technology – Maximum durability. Designed specifically for frequent coupling and uncoupling.
- Ergonomic Design – Insulated handle protects operator from temperature effects created by high flowing LP gas. Minimal force required to engage nozzle.
- Durable Construction – Heavy-duty brass, aluminum and stainless-steel construction provides excellent corrosion resistance in the harsh fueling environment.
- Ease-of-Use – Incorporates a single plane 360 degree inlet swivel.
- Safety – Will not dispense gas until securely engaged onto an appropriate receptacle. Once engaged, it will not disengage until released by operator.
- Individually Leak Tested and Inspected with Traceable Serial Numbers.
- Replaceable Rubber Cover – Deflects venting LP gas away from operator's hand.
產品材質:
槍體：鋁
內部材質：銅和鋼
密封：特殊配方的聚合物和彈性體，適用于LPG加氣狀態。
外部材質：鋁、不銹鋼、銅
產品說明:
-大工作壓力： 350 psi
脫開時放氣量：4.3CC
重量： 1.4 kg
接口形式： 意大利式接口形式
溫度范圍：-40°C至85°C(-40°F至185°F)
Technical Specifications
MAWP: 350 psi (24 bar)
LPG Discharge on Disconnect: 1 cm3 of liquid LPG
Weight: 3.08 lbs. (1.40 kg)
Locking Release: Trigger on lever
Coupling Style: Italian Style
Temperature Range: -40° F to 185° F (-40° C to 85° C)
Technical Specifications
- Maximum Operating Pressure: 350 psi (24 bar)
- LPG Discharge on Disconnect: 4.3 cc
- Weight: 3.08 lbs. (1.40 kg)
- Locking Release: Trigger on lever
- Coupling Style: Italian Style
- Temperature Range: -40° F to 185° F (-40° C to 85° C)
Also available in brass models. Materials
Body: aluminum
Internal Components: brass and steel
Seals: specially formulated polymers and elastomers specific to LPG applications
External Components: brass, stainless steel, anodized aluminum

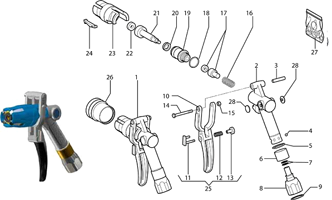

Dimensions
| # |
Part # |
Name |
Qty |
| 1. |
T3 |
Complete Nozzle w/ alum separator |
1 |
|
T3B |
Complete Nozzle w/ brass separator |
1 |
|
T3B-A |
Complete Nozzle w/ brass separator |
1 |
| 2. |
OT301 |
Body |
1 |
| 3. |
OT302 |
Bushing |
1 |
| 4. |
OC001 |
Ball |
6 |
| 5. |
OC005 |
Flexible Ring |
1 |
| 6. |
OT303 |
Inner Frame |
1 |
| 7. |
OC010 |
Ring |
2 |
| 8. |
OT304 |
Junction |
1 |
| 9. |
OC011 |
Ring |
1 |
| 10. |
OT305 |
Lever |
1 |
| 11. |
OT306 |
Fork |
1 |
| 12. |
OT307 |
Spring |
1 |
| 13. |
OT308 |
Push Button |
1 |
| 14. |
OC030 |
Screw |
1 |
| 15. |
OC050 |
Nut |
1 |
| 16. |
OT309 |
Spring |
1 |
| 17. |
OT320 |
Complete Valve 1) |
1 |
| 18. |
OC012 |
O-Ring 1) |
1 |
| 19. |
OT312 |
Head 1) |
1 |
| 20. |
OC013 |
Gasket 1) |
1 |
| 21. |
OT313 |
Piston 1) |
1 |
| 22. |
OT314 |
Gasket 1) |
1 |
| 23. |
OT315 |
Sleeve ALUM |
1 |
|
OT315B |
Sleeve BRASS |
1 |
| 24. |
OT316 |
Hammer |
4 |
| 25. |
OT317 |
Complete Fork |
1 |
| 26. |
OT420 |
Flexible Dust Cover |
1 |
| 27. |
OT319 |
Set Of Gaskets |
1 |
| 28. |
OT324 |
Disc |
2 |
|
OT3KIT |
OT3 KIT ( 1) included) |
|
|
