OPW 5000 Series Bus/Heavy-Duty Truck Nozzles
CNG加氣槍 OPW 5000系列巴士、重型貨車加氣槍
應用行業：交通

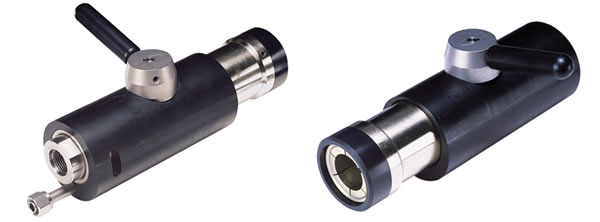

OPW 5000系列（大流量）加氣槍
OPW 5000系列巴士、重型貨車加氣槍（需要與CL50系列插座一起使用）。
OPW 5000系列加氣槍適用于超大流量的公共或私營加氣系統�？捎糜趯�(duì)長途汽車、重型貨車進行自助的快速加氣。
所有OPW NGV型加氣槍都嚴格符合相關行業規范對加氣設備安全和效率的要求。
OPW 5000 Series Bus/Heavy-Duty Truck Nozzles
性能特點
用戶操作簡單：在槍和插座連接后，旋轉把手180°，卡扣會牢固的卡牢插座，通過內部的三通閥去調整加氣，只有與插座連接穩牢，氣槍才會開始加氣，當加氣完成后，轉動把手90°，即可停止加氣并自動排氣，之后即可輕松拔槍。
- 5000系列無需后端三通排氣閥，可直接和加氣管相連：可應用于公共或私營的自助加氣站，無需加氣員服務。
- 快速、大流量的加氣：獨特的內部密封材質可應用于快速加氣環境，可快速對中等儲氣車進行加氣。
- 直接排氣CT5000S：通過3/8″不銹鋼排氣管連接于遠程排氣管道或加氣機上端的排氣口，在拔槍前將捕獲的余氣排放，排放余氣是安全環保的，同時此額外的措施使加氣站滯留的CNG最小化，也減少了排氣噪音和避開氣味。
- 卡扣技術的應用：特殊的卡扣設計保證了CNG加氣過程中高壓、頻繁的連接和斷開，接觸的壓力被均勻的分布在插座的接觸面上，使二部件接觸磨損降低到最低。
- 人性化的設計：使用者可簡單造作即可與插座穩固耦合并加氣，絕緣的外套保護使用者免受溫度的傷害。
- 持久的壽命設計：在惡劣的加氣環境下，黃銅材質的結構具有優良的抗腐蝕性。
- 避免誤操作：通過獨特的凸輪設計來帶動前后開關模塊，避免了誤操作而導致氣槍立即開啟或關閉。
- 每個產品都經過嚴格的氣密測試，并打印對應的檢驗編號。
- 獲得認證：ASME壓力容器認證、德州RCT、以及和TUV相互認可的德國壓力容器認證。
產品材質：
槍體：黃銅和不銹鋼
內部部件：不銹鋼和黃銅
密封：特殊配方的聚合物和彈性體，適用于高壓的NGV環境。
卡扣：不銹鋼材質
產品規格:
最小流量：5000 SCFM （標準立方英尺）在3000 psid（壓差）
溫度范圍：-40°C至85°C(-40°F至185°F)
重量： 3.98 kg. (8.77lbs.)
流動系數： 2.75
設計壓力： 4500 psi (310 Bar)
OPW 5000 Series Bus/Heavy-Duty Truck Nozzles
OPW 5000 Series nozzles are designed for extremely high-flow public and private CNG fueling systems. Applications include quick-fill, self-service fueling of transit buses and large trucks.
Materials
Body: brass
Jaws: stainless steel
Seals: specially formulated polymers and elastomers specific to high pressure NGV applications
Features & Benefits
High-Flow/Fast-Fill Capability - to provide quick fueling of large storage vehicles. Internal seals are specially designed to meet the demands of fast-fill NGV fueling.
User-Friendly Single-Action Operation - entire fueling operation is initiated by simply engaging nozzle and receptacle with a single 180o rotation of the handle. This automatically secures the nozzle jaws onto the receptacle and activates a system of three internal valves that regulate fueling. The nozzle will not dispense gas until securely engaged onto an appropriate receptacle. When fueling is completed, rotation of the handle to the disconnect position automatically stops the flow of gas into the nozzle, vents the trapped gas and releases the nozzle from the receptacle. The 5000 Series nozzles connect directly to the hose, eliminating the need for a three-way valve. They are designed for public or private self-service applications, eliminating the need for a trained attendant.
Directed Vent - directs the gas vented at disconnect and directs it out of the nozzle via a 3/8" stainless steel tubing connection (requires -6 compression adaptor), which can be piped to a remote venting location or back to the upstream side of the compressor. Directing the vent gas is environmentally desirable and will provide an added measure of safety by minimizing the amount of gas present at the filling site. It also reduces vent noise and escaped gas smell.
Jaw-Lock Technology - designed specifically for the frequent coupling and uncoupling of the high-pressure gas connections of NGV fueling. Forces at the contact point are distributed over the entire surface area of the receptacle.
Ergonomic Design - one simple and convenient motion ensures connection and dispensing by all users. Insulated jacket provides thermal protection for operator’s hand.
Durable Construction - brass and stainless steel construction provides excellent corrosion resistance in the harsh refueling environment.
Tamper Resistant - specially designed cam system actuates the front and rear valve module. Any tampering with the valve will result in an immediate shut-off of the dispensing process.
Individually Leak Tested and Inspected with Traceable Serial Numbers
Listings and Certifications
Agency Listings - ASME Pressure Vessel Registered, Railroad Commission of Texas, Special Application of German Pressure Vessel Available at Additional TUV cost.
Catalog Pages
CNG dispensing equipment
Technical Specifications
Minimum Flow Rate: 5,000 SCFM @ 3,000 psid
Temperature Range: -40° F to 185° F (-40° C to 85° C)
Weight: 8.77 lb. (3.98 kg)
Cv: 2.75
MAWP: 4,532 psi (312.5 bar)
Dimensions - CT5000S
|
