What to Consider when Selecting Swivel Joints
選擇旋轉接頭時應考慮得問題
從消防車到鋼廠，旋轉接頭是各種機械和應用的基本部件。這些部件提供了固定管道或軟管與旋轉機械部件之間的平滑連接。設計、工廠和維修工程師使用柔性管道系統的旋轉接頭、裝載臂、軟管卷筒、下水道沖洗器和廢水處理設備以及各種類型的加工機械。它們還使用旋轉接頭在機床冷卻液輸送、汽包填充應用以及各種廠內流體和干散貨輸送應用中。在這里，OPW工程系統產品管理總監David Morrow提供了他的專業知識。
From fire trucks to steel mills, swivel joints are essential components for all kinds of machinery and applications. The components provide the smooth connection between stationary pipes or hoses and rotating machinery parts.Design, plant and maintenance engineers use swivel joints in flexible piping systems, loading arms, hose reels, sewer rodding and wastewater treatment equipment, and various types of process machinery. They also use swivel joints in machine tool coolant transfer, drum-filling applications, and in a variety of in-plant fluid and dry bulk transfer applications. Here, David Morrow, Director of Product Management for OPW Engineered Systems offers his expertise.
如果-先進的機器的部件不能移動，它就會發生故障。旋轉接頭是必要的投資，回報很大。它們延長了機器的使用壽命，減少了維護和停機時間。在選擇旋轉接頭時，遵循制造商的規范是非常重要的，否則會發生泄漏，導致機器故障。The most advanced machinery can breakdown if its elements aren't able to move. Swivel joints are necessary investments that pay off in a big way. They extend machinery lifetime and reduce maintenance and downtime. It's extremely important to follow the manufacturer's specifications when selecting swivel joints or leakage will occur and the machinery will fail.
應用環境對于選擇正確的旋轉接頭至關重要。壓力、溫度和支撐重量等應用設計參數對于正確選擇水龍頭以及了解流體本身的腐蝕性都起著至關重要的作用。The application environment is critical to selecting the right swivel joint. Application design parameters such as pressure, temperature and supported weight all play an essential role in properly selecting a swivel, as well as understanding the corrosiveness of the fluid itself.
The Options are Endless
選擇是無止境的
考慮到潛在的組合，旋轉接頭的寬度是無限的尺寸、密封和連接，更不用說金屬了。多功能性是任何有效旋轉接頭的關鍵，因為根據工作和所需功能的不同，規格可能有很大差異。The breadth of swivel joints is endless when you consider the potential combinations
of sizes, seals, and connections, not to mention metals. Versatility is the key to any effective swivel joint as specification can vary drastically depending on the job and functionality required.
Specialty Swivel Joints
特種旋轉接頭
可為任何可能的應用設計和制造定制旋轉接頭。工程師可以通過提供經驗豐富的咨詢，以正確的旋轉設計為后盾，專門為您的應用需求量身定制，幫助您確定適合您的特殊應用的設計。特殊轉環有多種材料和尺寸可供選擇。一些-典型的應用包括：裝載臂、軟管卷盤、鋼廠、船用/碼頭軟管、過濾設備、油罐車、滾筒填料。Custom swivel joints can be designed and manufactured for any possible application. Engineers can help you determine the appropriate design for your special application by providing experienced consultation, backed up by the right swivel design, tailored specifically to meet your application needs. Specialty swivels are available in a wide range of materials and sizes. A few of the most typical applications include: Loading arms, hose reels, steel mills, marine/dock hoses, filtration equipment, tank trucks, drum fillers.

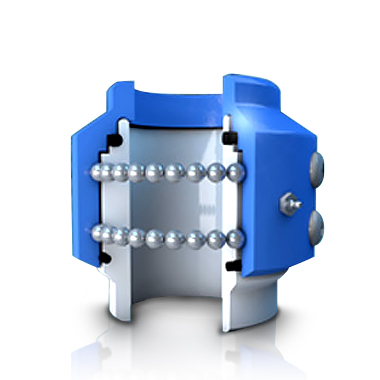

Loading Arm Replacement Swivels
裝載臂更換旋轉裝置

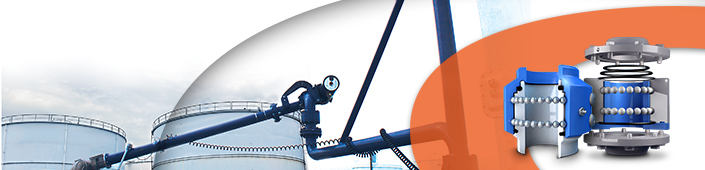

裝載臂系統允許通過柔性管道系統將流體或液化氣體輸送到罐車或軌道車中。有些應用程序需要加載臂通過頂部連接加載，而其他連接點位于底部。裝載臂旋轉接頭的功能多年來不斷發展，以滿足流體處理解決方案的要求。Loading arm systems allow the transfer of fluids or liquefied gas into a tank truck or rail car through a flexible piping system. Some applications require a loading arm to load through a top connection, while other connection points are at the bottom. The functionality of loading arm swivel joints has evolved over the years to meet the demands of fluid handling solutions.

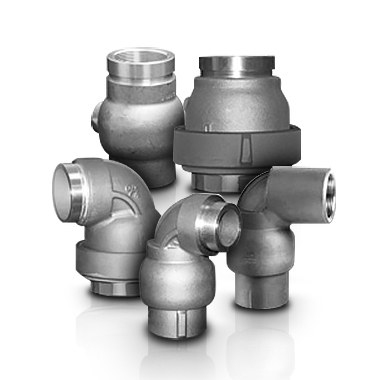

Hose Reel Swivels
軟管卷盤旋轉接頭
旋轉接頭是許多軟管卷盤應用程序的一個組成部分，有大量這些零件是專門為軟管卷盤設計的，具有自定義選項。Swivel joints are an integral part of many hose reel applications and there is a large variety of these parts designed specifically for hose reels, with customization options.

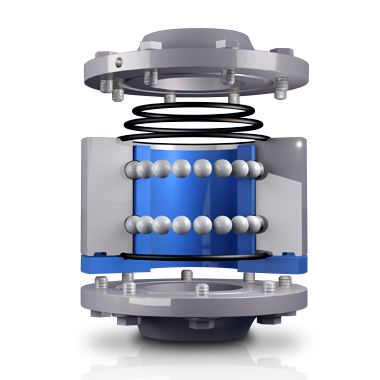

Dual Split Flange Swivels
雙對開法蘭旋轉接頭
雙分流法蘭旋轉接頭是專門設計用于傳輸酸，溶劑，石化產品和其他有毒流體。這種類型的旋轉接頭具有重型結構和獨特的設計組件，有助于使其成為行業中-佳的旋轉技術。Dual Split Flange swivel joints are specifically designed to transfer acids, solvents, petrochemicals and other toxic fluids. This type of swivel joint feature heavy-duty construction and unique design components that help make it the best available swivel technology in the industry.
For more information on swivel joint features and custom design capabilities, please visit www.opw-es.com and email us : [email protected]
|
