Civacon高流量海底閥
Civacon通用高流量海底閥設計用于機械拖車操作
Civacon MaxAir 系列海底閥有著精良的設計，在液體流動通道中沒有活動部件，實現了高流速、高落差，保證了最大的效益�；钊系娜孛芊獯_保了最大的可靠性，并減少了維護。鑄件經過精心設計減輕了重量、改善了流動性，并容易安裝在比較緊湊的位置。
通用高流量海底閥符合HM183標準在苛刻的環境中經現場測試，可以承受-40C到66C的溫度。
所有MaxAirM海底閥都帶有一個緊急切斷槽，出廠還裝有熱(熔)安全塞，以及一個當氣控失效時用以手動打開的插拔螺桿。這種耐用開孔的設計縮短了裝料、卸料、維護的時間，因此，裝備了MaxAir兩的卡車可以有更多的時間執行運輸。
特性
- 可與4英寸TTMA油罐兼容
- 適用于所有制造商的標準機械操作
- 減少?gòu)?fù)管排泄管路回流到相鄰罐體的問題- 可選排出濾網和線纜安裝架(需另外購買)
- 可選安裝孔槽，簡化安裝
- 鋁質殼體，可選擇的密封材料
有帶5x4英寸彎管或直管出口或法蘭出口- 可用于柴油、生物柴油、汽油、乙醇和甲醇。有多種配置，以實現標準兼容性，便于安裝(見下頁圖)
Civacon’s Universal High Flow Emergency Valves are designed to be used for Mechanical Trailer Operations
The Civacon? Universal Series High Flow Emergency Valves have been designed with no moving parts in the flow path for superior flow rates, faster drops and maximum profits. Castings have been streamlined for all configurations to decrease weight, improve flow and fit easier into those tight installations.
Universal High Flow Emergency Valves conform with HM183 standards The Universal High Flow Emergency Valve has been field tested in harsh environments and will withstand temperatures from –40?F to 150?F (-40?Cto 66?C).
All Emergency Valves feature a frangible connection at the shear groove. This durable, open-bore design reduces loading, unloading and maintenance time so Civacon? equipped trucks spend more time on the road.

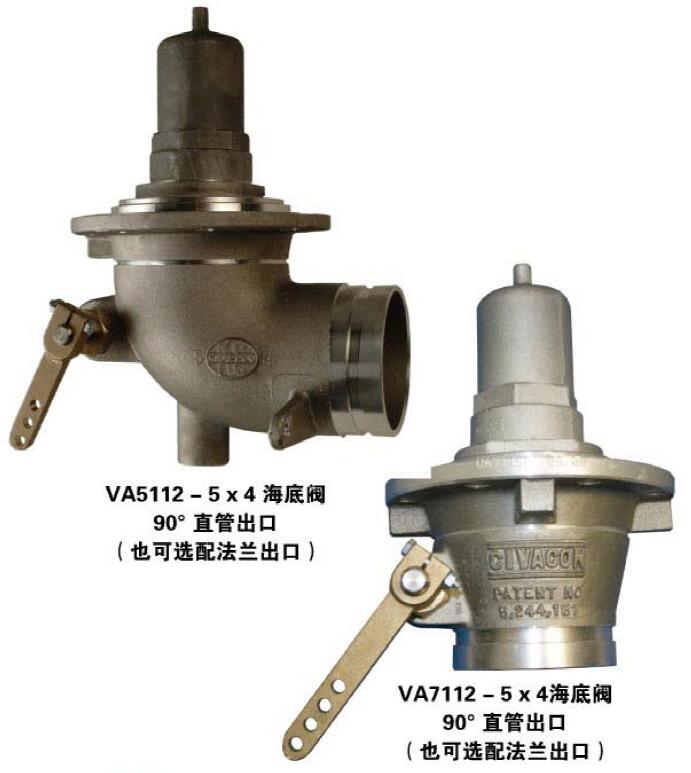

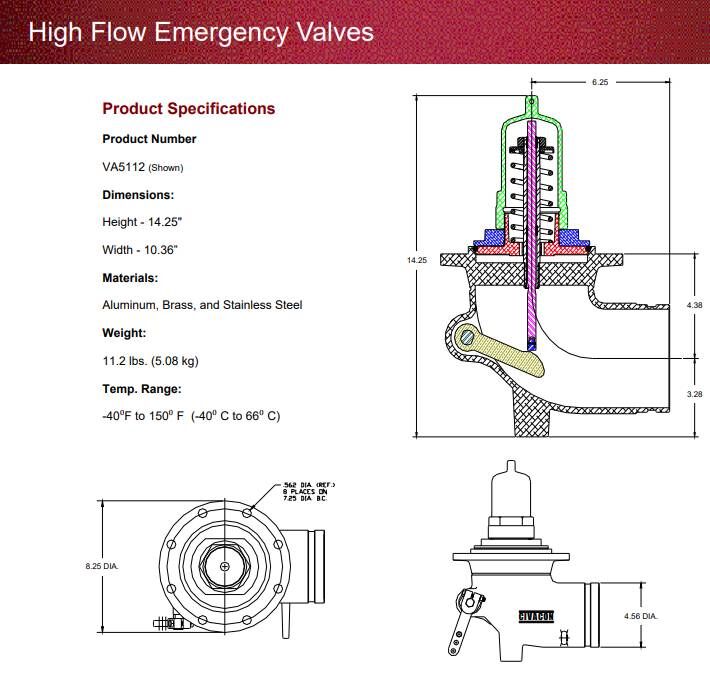

VA5112 - 5 x 4 Emergency Valve
90° Victaulic Outlet
(Also Available w/ Flanged Outlet
VA7112 - 5 x 4 Emergency Valve
Straight Victaulic Outlet
(Also Available w/ Flanged Outlet
Features and Benefits
- Compatible with 4” TTMA sump applications
- Compatible with all manufacturer’s standard mechanical operators
- Reduces backflow problems into adjacent compartments on manifold discharge plumbing
- Optional drain screen and cable mounting bracket (Sold Separately)
- Optional slotted mounting holes simplify installation
- Aluminum housing with a choice of seal materials
- Available as a 5” x 4” elbow or straight with Victaulic or flanged outlets.
- Compatible with diesel, biodiesel, gasoline, ethanol and methanol
- Available in a variety of configurations for standard compatibility and easy installation (see chart on back)
|
