OPW 8580系列自診斷式光學-熱感應裝車控制系統
OPW 8580 Civacon Opti-Therm Monitor
OPW 裝車控制器

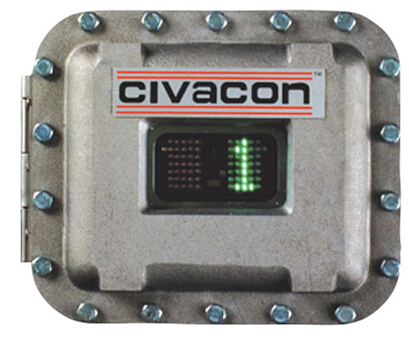

OPW 8580系列自診斷式光學-熱感應裝車控制系統 OPW 8580 Civacon Opti-Therm Monitor
OPW工程系統公司可提供完整系列的CIVACON裝車控制器，用來監控裝卸操作的過程。這種監視器能夠感測傳感器的類型、儲罐內的液體狀態、是否發生過量灌裝并確認接地狀況。
OPW 8580 Civacon Opti-Therm Monitor
OPW CIVACON 8580系列自診斷式光學-熱感應裝車控制系統
- 自動識別過量灌裝檢測系統的類型（光信號或熱信號技術）
- 診斷功能還包括接地確認、容許狀況和艙室識別等。操作模式顯示在LED屏上
- 8580高科技體系減少了發生錯誤的可能性。
- 能夠用在包括-多12個光學探頭和8個熱感應探頭的系統中
- 過量灌裝和接地確認采用獨立的輸出繼電器，從而保證超強的靈活性和安全性
- 采用容易讀數的高分辨率3" x 5"LED診斷顯示器
- 可檢測出過量灌裝并向終端自動化系統發信號停止灌裝
8580光—熱控制器—規格
操作溫度：-40oF~140oF(-40oC~60oC)
輸入要求：120 VAC 60 Hz
15VA（標準），可供240 VAC
輸出繼電器觸點：240 VAC–5A DPDT
響應時間：不超過0.5秒（干-濕轉換過程）
電氣連接：內置接線端子板
外殼：NEMA 4防爆型
Class 1, Div. 1, Group D
殼體材質：鋁
重量：8580型—43 lbs.
認證：UL, CUL (加拿大)，
CENELEC (歐洲)
Order Guide
- Monitors
- 8460-8460- Opti-Therm Rack Monitor with ground verification, 6 Channel and Key Bypass (US Only)
- 8580- Opti-Therm Rack Monitor with ground verification, 6 Channel, LED Display and Bypass (US Only)
- 8580C (Canada)- Rack Monitor with ground verification, 8 Channel, LED Display and Bypass (Canada Only)
- Plug & Cord Sets
- Optic Plug & Cords - 7100-7100, Optic plug with 30’ 10-conductor coiled cord
- 7120-7120, Optic plug with 30’ 10-conductor coiled cord and 7-pin breakaway plug
- 7100SR-7100, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement
- 7120SR-7120, Optic plug with 30’ 6-conductor blue coiled cord for Scully replacement and 7-pin breakaway plug
- 7190S-0020, 7100-7100 Optic plug with 30’ coiled cord and 7500-7500 junction box
- Thermistor Plug & Cords
- 7300-7300, Thermistor plug with 30’ 10-conductor coiled cord
- 7300C-7300, Thermistor plug with 30’ 10-conductor coiled cord, CANADA ONLY
- 7300SR-7300, Thermistor plug with 30’ 10-conductor coiled cord for Scully replacement
- 7320-7320, Thermistor plug with 30’ 10-conductor coiled cord and 13-pin breakaway plug
- 7320SR-7320, Thermistor plug with 30’ 10-conductor coiled cord for Scully replacement and 13-pin breakaway plug
- 7390S-0020, 7300-7300 Thermistor Plug with 30’ 10-conductor coiled cord and 7500-7500 Junction box
- 7320-7320 Thermistor Breakaway Plug with 30’ 10-conductor coiled cord, 13-pin breakaway plug and 7510T-7510 Junction box
- 7320SR-7320 Thermistor Breakaway Plug with 30’ 10-conductor coiled cord for Scully replacement, 13-pin breakaway plug and 7510T-7510 Junction box
- Grounding Cable & Clamps
- 7720-7720, Ground Verification Clamp with 40’ straight cord
- 7720-COIL, Ground Verification Clamp with 30’ coiled cord
- 7620-7620, Ground Verification Plug & Cord Set for dual ball application with 30’ straight cord
- 7620-COIL, Ground Verification Plug & Cord Set for dual ball application with 30’ coiled cord
- Junction Boxes
- 7500-7500, Junction Box for Optic, Thermistor and Ground verification Plug & Cord Sets (Non-Breakaway)
- 7540-7540, Junction Box with 7-pin socket for Cane Probes or Breakaway Optic Plug & Cord Sets
- 7510T-7510, Junction Box with 13-pin socket for Breakaway Thermistor Plug & Cord Sets
- Options
- 8580, Opti/Therm Rack Monitor with Ground verification, 6 Channel, LED Display and Bypass (US Only)
- 7150-7150, Optic Plug Hanger
- 7350-7350, Thermistor Plug Hanger
- 1386-1386, Opti/Therm Rack Monitor Tester
Civacon Plug & Cord Set from OPW-ES
The Civacon Plug & Cord Set has been designed to prevent equipment damage while saving operators the time and money that can be lost as a result of unplugged driveaways. The Breakaway Plug & Cord Set utilizes high-quality, corrosion-resistant
materials for reliable long-life operation.
PRODUCT PRODUCT # DESCRIPTION
Plug & Cord
(select thermistor
or optic)
7100-7100 Optic Plug with 30' 10-conductor coiled cord
7120-7120 Optic Plug with 30' 10-conductor coiled cord and 7-pin breakaway plug
7100SR-7100 Optic Plug with 30' 6-conductor blue coiled cord for Scully replacement
7120SR-7120 Optic Plug with 30' 6-conductor blue coiled cord for Scully replacement and 7-pin breakaway plug
7300-7300 Thermistor Plug with 30' 10-conductor coiled cord
7300C-7300 Thermistor Plug with 30' 10-conductor coiled cord (Canada only)
7320-7320 Thermistor Plug with 30' 10-conductor coiled cord and 13-pin breakaway plug
7300SR-7300 Thermistor Plug with 30' 10-conductor coiled cord for Scully replacement
7320SR-7320 Thermistor Plug with 30' 10-conductor coiled cord for Scully replacement and 13-pin breakaway plug
Junction Box
7500-7500 Junction Box for Optic, Thermistor and Ground Verification Plug and Cord Sets (Non-Breakaway)
7540-7540 Junction Box with 7-pin socket for Cane Probes or Breakaway Optic Plug & Cord Set
7510T-7510 Junction Box with 13-pin socket for breakaway Thermistor Plug & Cord Set
|
