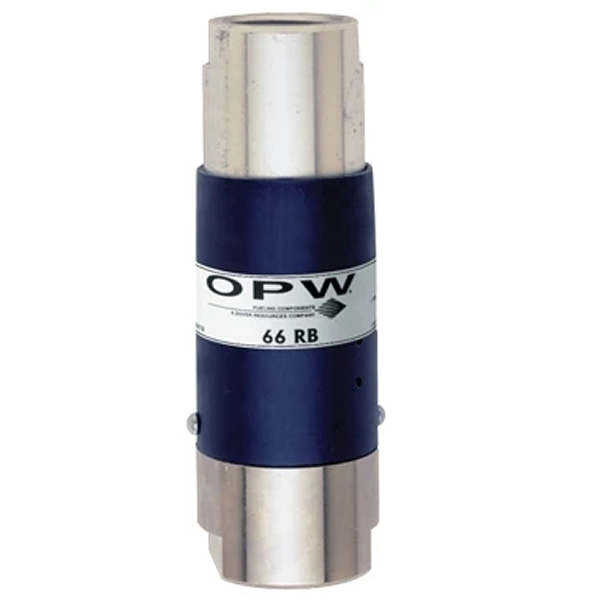

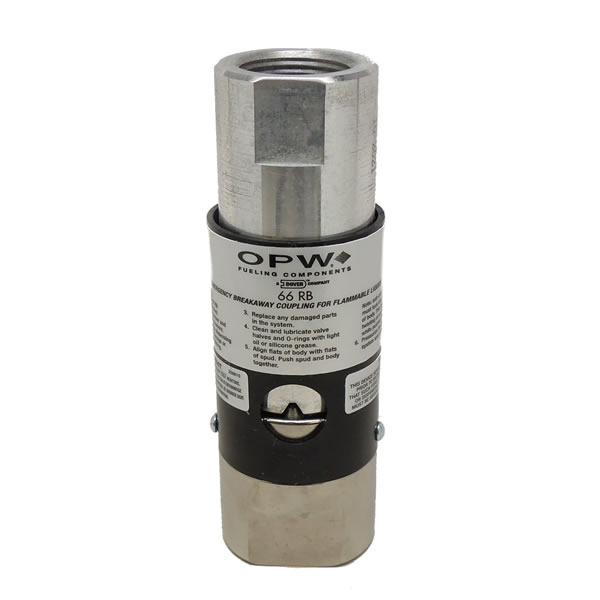

OPW 66RB 1” 可重復使用拉斷閥 OPW 66RB 1" Reconnectable Breakaway
OPW 66RB-2000 Reconnectable Breakaway
66RB-2000可重復使用拉斷閥是設計用于當今的高流量加油市場。該閥門安裝于加油機軟管上，在-大拉力為350磅的情況下，66RB閥門會自動脫離。當66RB脫離后，兩端閥門自動關閉，避免流體燃料從兩端軟管流出。
OPW 66RB 1” 可重復使用拉斷閥 OPW 66RB 1" Reconnectable Breakaway
OPW 66RB-2000 Reconnectable Breakaway
為了實現66RB－2000的正常功能，正常的安裝方式是將該閥安裝于一根不短于12"的膠管上，例如OPW 66H。
材料
閥體：鋁合金
彈簧：不銹鋼
閥套：HPPE
密封件：Viton
提升閥：鋁合金
規格
產品代號 尺寸 重量
英鎊 公斤
66RB-2000 66RB-2000 1.14 0.25
性能特點
拉斷力：66RB的-大拉斷力設計為不超過350磅
易于重新連接：只須簡單的將分離的兩部分閥體擠壓到一起即可連接起來，所需擠壓力大約為15磅。
該拉斷閥的外面裝配有持久耐用的塑料閥套它可有效地保護提升閥與密封件的表面在分離的過程中免受擠壓。
低壓降：獨特的單向閥門設計，在高流速、高流量時盡可能使壓降變?yōu)?低。
工作壓力：-大工作壓力設計為50PSI。
獲得UL和ULC全面認證，
Description
The 66RB-2000 Reconnectable Breakaway is designed for use in today’s truckstop and high-volume markets. Intended for installation on fuel dispensing hoses, the 66RB will separate at a maximum force of 350 lbs. Upon separation, the integral check valves close, stopping the flow of fuel and limiting any fuel spillage from either hose end. For proper operation on high-hanging hoses, the OPW 66RB must always be installed using a “straightening hose” with a minimum length of 12", such as the OPW 66H. For low hose applications, the 66RB should be installed downstream of the retractor cable.
Features & Benefits
UL and ULC listed for use in gasoline, diesel, and up to 10% ethanol blends. See specific listings.
Pull Force - the 66RB will break away with a pull force of no more than 350 lbs.
Easily Reconnected - after relieving line pressure, simply push coupling halves together until latched. Reconnection force is approximately 15 lbs.
Protected Coupling and Poppet - the breakaway's poppets and sealing surfaces are protected from impact during separation by a durable plastic sleeve.
Low Pressure Drop - the integral check valve design allows for minimal pressure drop for faster, high-volume fill-ups.
DESIGN WORKING PRESSURE
50 psi (3.45 bar) maximum pressure.
Materials
Body: Aluminum
Sleeve: HDPE
Seals: Viton?
Spring: Stainless steel
Poppet: Aluminum
Listings & Certifications
Catalog Page
66RB 1" Reconnectable Breakaway
Installation Instructions
66RB Installation Instructions - English
|
