OPW 633CPP 油氣回收氣相接頭接頭
Vapor Couplers

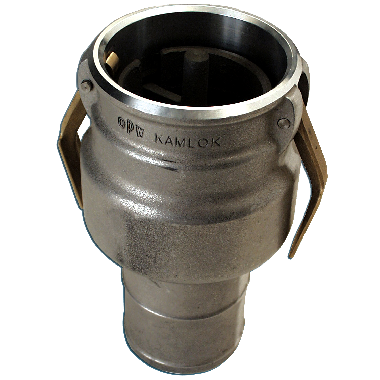

現(xiàn)場測試表明，Civacon的633CPP油氣回收氣相接頭接頭將整個接頭的壓降降低了50%。證明633 CPP接頭的設(shè)計能夠幫助您安全地滿足操作需求，同時提供卓越的性能。*在以600 GMP（加侖/分鐘）同時填充三個隔間的同時，實現(xiàn)了Civacon 633CPP/Civacon 634LHV接頭從12“6”（以英寸/水計）的壓降。Field tests show Civacon's 633 CPP Vapor Coupler reduces pressure drop across the fitting by 50%. Proof positive that the 633 CPP Coupler is engineered to help you safely meet operational demands, while delivering superior performance.*Pressure Drop from 12" 6" (measured in inches/water) across Civacon 633CPP/Civacon 633LHV coupling realized while simultaneously filling three compartments at 600 GMP (gallons per minute)。
功能和優(yōu)點
-633CPV提升式軟管柄連接器用作止回閥，直到連接到運輸油氣回收氣相接頭回收適配器
-633CPP與633CPV類似，不同之處在于它在止回閥上包含Buna-N密封，并且它包括一個探針，用于打開633LVB上的提升閥
-633CV軟管柄連接器包括一個探針，用于啟動633LVB和611T中的提升閥
OPW 633CPP 油氣回收氣相接頭接頭
Vapor Couplers
Features & Benefits
- The 633CPV poppeted hose shank coupler acts as a check valve until connected to the transport vapor recovery adaptor
- The 633CPP is similar to the 633CPV except it contains a Buna-N seal on the check valve and it includes a probe to open the poppet on the 633LVB
- The 633CV hose shank coupler includes a probe that actuates the poppet in a 633LVB and 611T
Part Numbers and Drawings
- 633CPP-4030 4"x 3" Vapor Kamlok Coupler w/Poppet

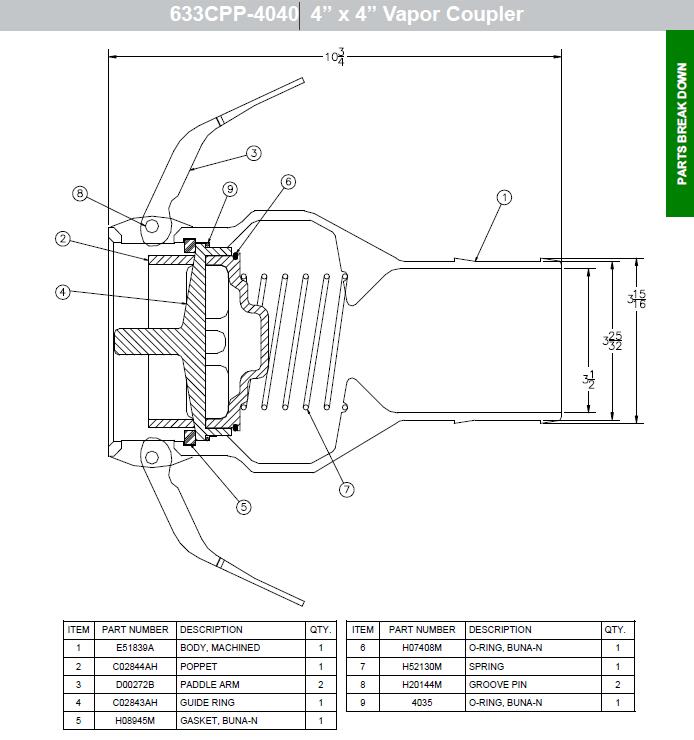

- 633CPP-4040 4"x 4" Vapor Kamlok Coupler w/Poppet
- 633CV-AL4030 4"x 3" Vapor Kamlok Coupler w/o Poppet
- 633CV-AL4040 4"x 4" Vapor Kamlok Coupler w/o Poppet
Brochures Parts Breakdown Installation Manuals
- Vapor-Adaptor Parts Drawing
- Vapor-Adaptor Parts Breakdown

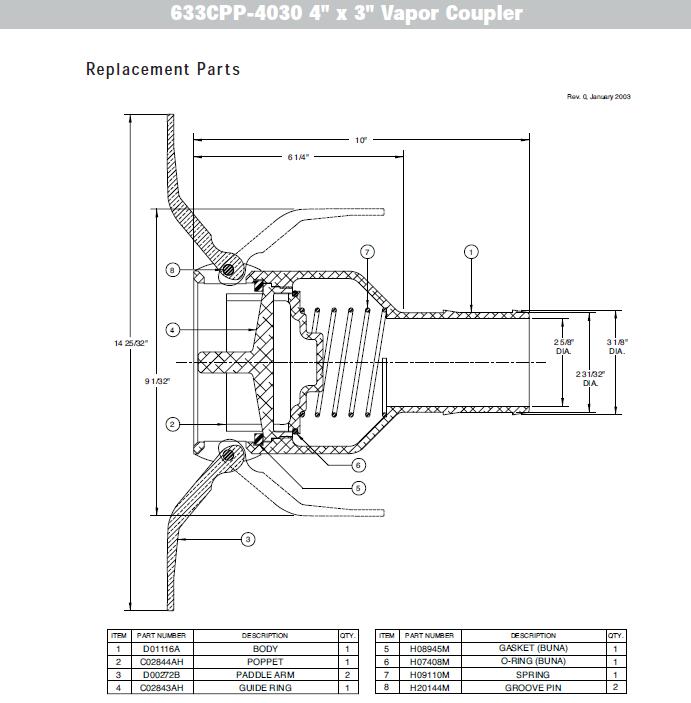

- 633CPP-4030 4"x 3" Vapor Kamlok Coupler w/Poppet

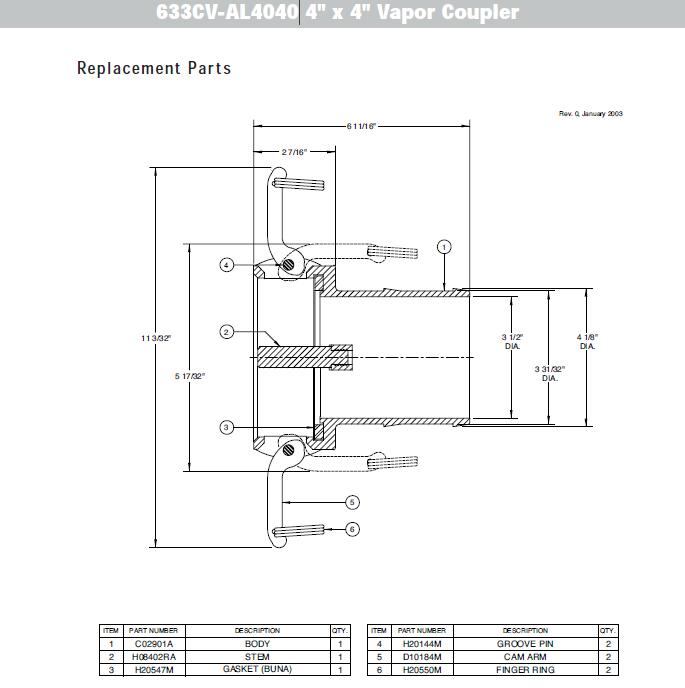

- 633CV-AL4040 4"x 4" Vapor Kamlok Coupler w/o Poppet
- 633CV-AL4040 4"x 4" Vapor Kamlok Coupler w/o Poppet

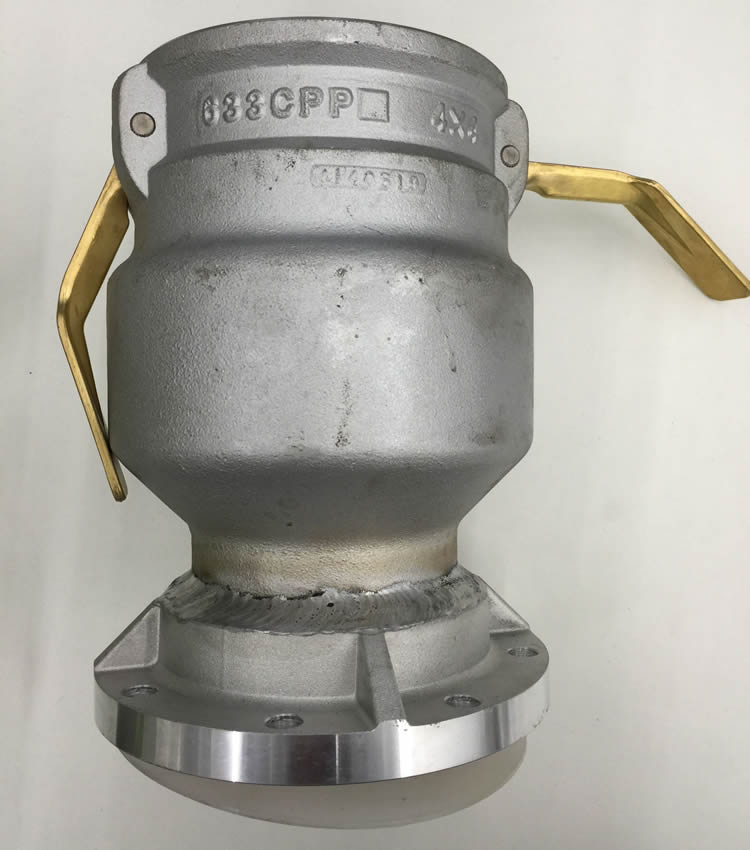

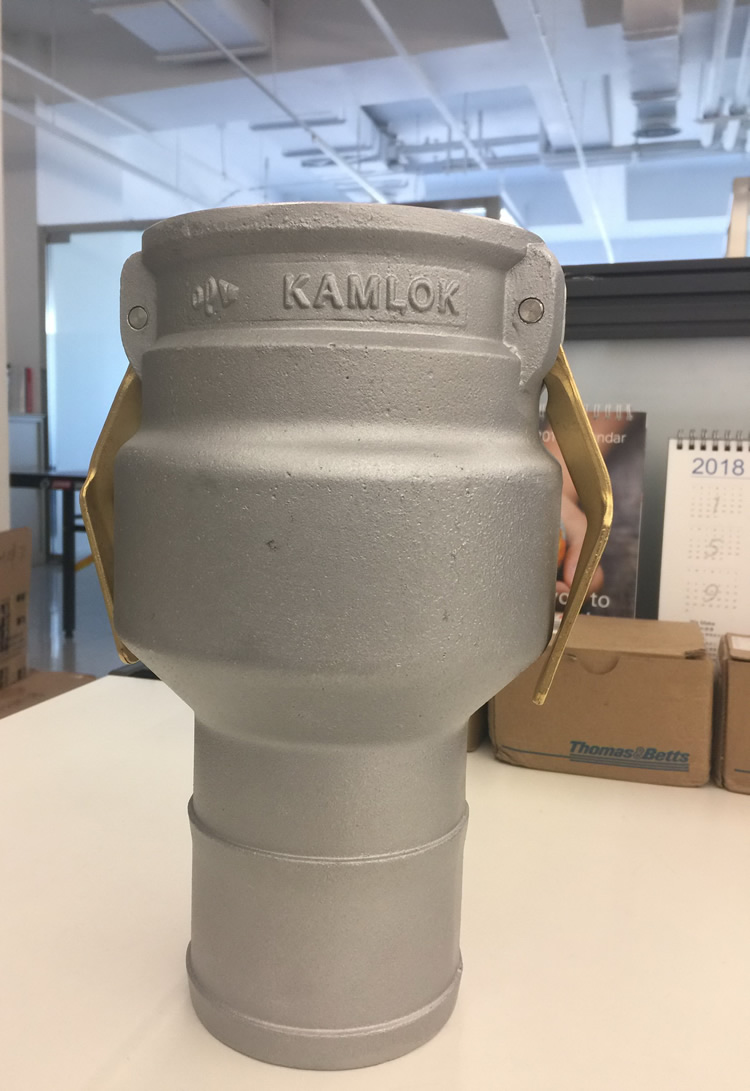

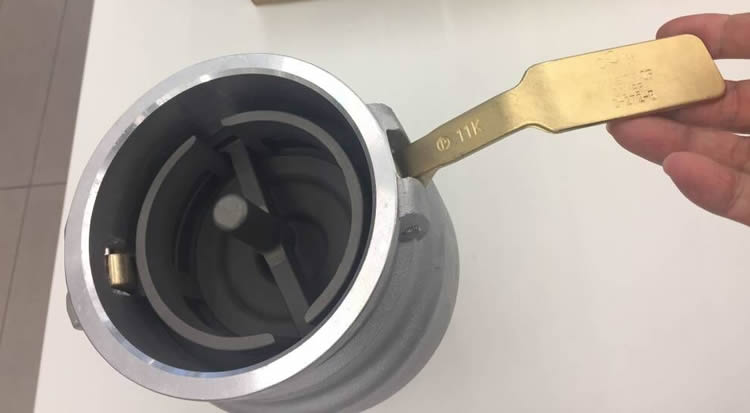

- 油氣回收氣相接頭實物照片分享
|
