Hiltap 3TL系列全用途高性能的快速接頭
Hiltap 3TL系列化學制品、石油化學產品和制藥行業應用高性能的快速接頭
Hiltap 3TL SERIES Transfer Loading Safety Quick Coupling for the chemical, petrochemical and pharmaceutical industries
3TL系列安全輸送裝載型快速接頭 :
新型密封技術適用行業包括化學制品、石油化學產品和制藥。
3TL SERIES Transfer Loading Safety Quick Coupling,
3TL輸送加載系列是一種全用途高性能的快速接頭，它是針對大跨度溫度范圍應用環境而設計的防泄漏密封。該接頭采用的與管線直徑無差異化設計因此對液體流速不會產生阻礙。當溫度發生變化時可重復使用的“金屬對金屬”式楔形密封組件會進一步提高密封效果。固定環可確保安全泄掉所有的殘余壓力。HT3-TL Transfer-Loading Series is an all-purpose high-performance quick coupler designed for leak-proof sealing through a wide range of temperatures. The design offers a non-restrictive flow with no variation in pipe diameter. The reusable metal-to-metal wedge-sealing components further enhance the seal as temperature changes are encountered. The retaining ring ensures safe venting of any residual pressure.

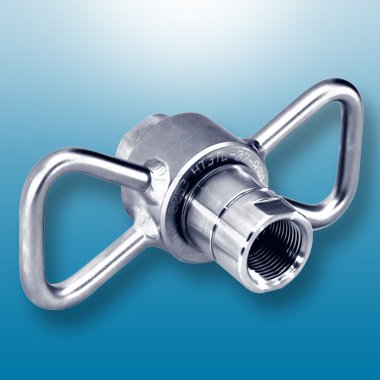

Hiltap 3TL SERIES Transfer Loading Safety Quick Coupling
pdf catalog資料下載
3TL系列安全輸送裝載型快速接頭特點和優點
- 設計用于取代錘擊式接頭和傳統的CAM鎖緊接頭。

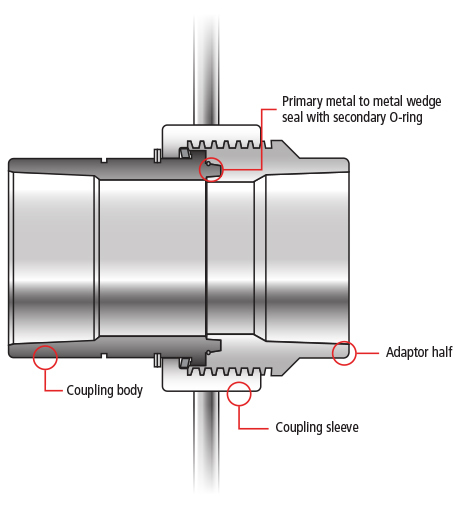

- 主密封采用可重復使用的“金屬對金屬”式楔形密封，并配備次一級的環境O型密封圈。
- 對液流無阻礙特性，便于更快進行聯接。
- 具有獨特的可自動排放殘余壓力的安全特性。
- 只需很小的扭力就可上緊到允許的額定壓力。
- 設計和測試是遵照ASME B31.3標準完成的。
- 規格：從3/4"到6"。
- 材料：316不銹鋼或碳鋼。
- 結構緊湊，可與所有類型的聯接方式相結合，包括螺紋型、對焊型或承插焊端面。
- 有各種不同的套筒把手可供選擇。
3TL SERIES Transfer Loading Safety Quick Coupling

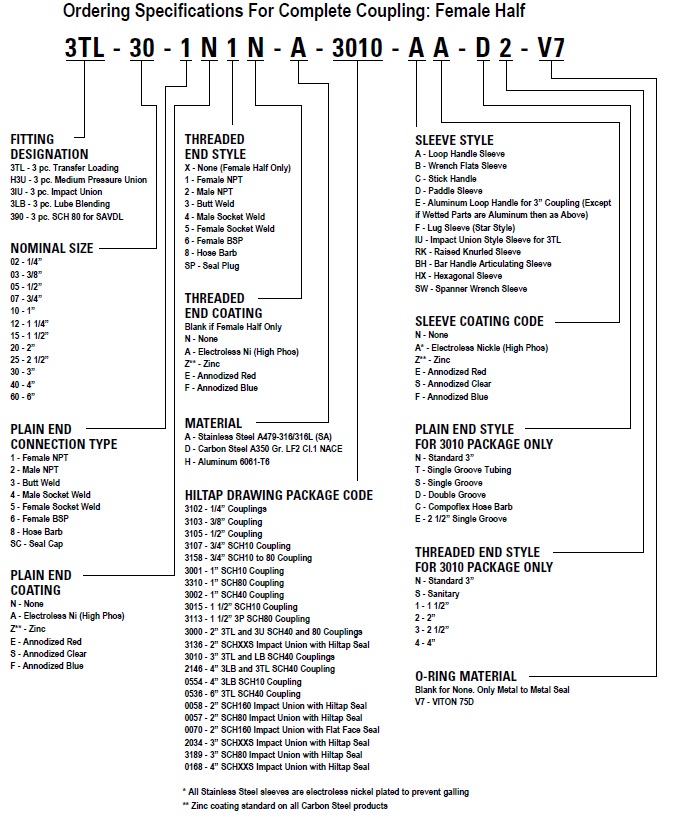

3TL系列安全輸送裝載型快速接頭訂購指南
3TL SERIES Transfer Loading Safety Quick Coupling
Applications
Perfect for situations where connections of high or low temperatures and pressures are experienced – in-plant, through plant, out-of-plant.
Cryogenics
Steam
Oil
LPG
LNG
Acids
EO
Chlorine
Ammonia
Paints
Fracking
Metal Alkyls
And More
- 3TL系列安全輸送裝載型快速接頭

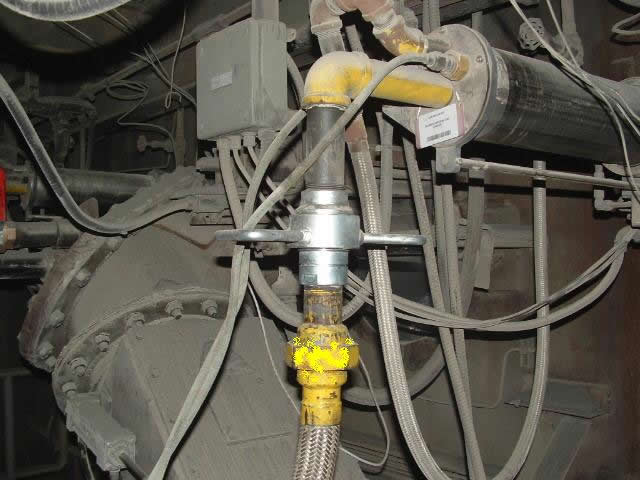

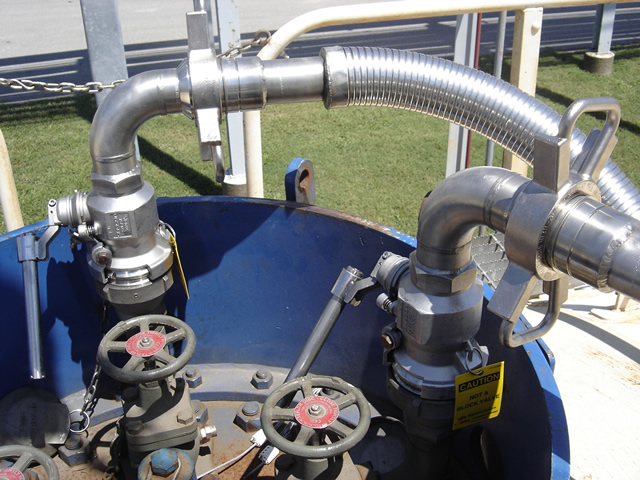

產品應用案例圖片
