OPW專業旋轉接頭 - Specialty Swivel Joints - OPW Hose Reel Swivels
OPW工程系統公司為滿足專業應用專門提供定制設計和制造服務，包括但不僅限以下：
- 軟管盤Hose reels
- 公路施工機械Highway construction machinery
- 消防設備Fire fighting equipment
- 機床Machine tools
- 過濾設備Filtration equipment
- 航空地面支持設備Aviation ground support equipment
- 油罐車Tank trucks
- 塑料機械Plastics machinery
- 圓桶灌裝Drum fillers
- 水利Hydraulics
OPW 軟管盤 Victaulic旋轉接頭
通過正確的旋轉接頭設計及對客戶應用需求的定制化滿足，OPW的工程師們可提供富有經驗的顧問以幫助您決定適合您特別要求的恰當設計，OPW專業旋轉接頭有各種材質和尺寸可供選擇。如有需要請聯系OPW工程部。
OPW Hose Reel Swivels Joints

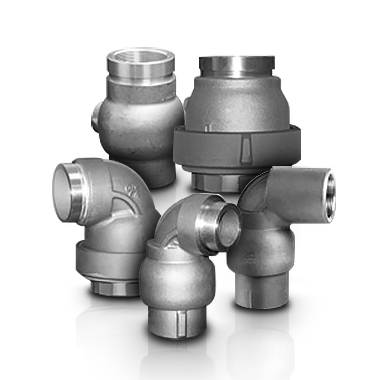

OPW Swivel Joint

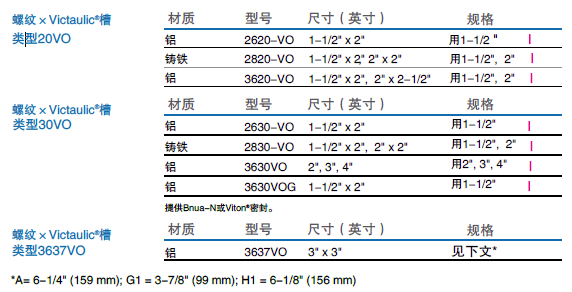

- OPW軟管卷盤/ Victaulic®旋轉接頭
|
|
|
OPW螺紋×Victaulic®槽類型20VO |
OPW螺紋×Victaulic®槽類型30VO
|
OPW螺紋×Victaulic®槽類型3637VO |
 |
 |
 |
Style 20VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
2” FNPT x 2?” Victaulic |
Style 30VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
2” FNPT x 2” Victaulic |
Style 3627VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
3” FNPT x 3” Victaulic |
 |
 |
 |
Style 3637VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
3” FNPT x 3” Victaulic |
Style 30 Swivel Joint
Standard Materials: Carbon Steel, 316 Stainless Steel, Aluminum
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
?” to 12” sizes
FNPT, ANSI Flanged |

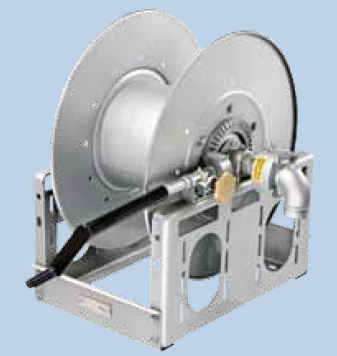

Hose reel applications is an OPW Swivel Joint. OPW produces a variety of Swivel Joints designed specifically for Hose Reel. |
OPW 3637VO是90°軟管盤，玻璃纖維包裹復合材料，Teflon 內襯，滑動軸
承（非滾珠軸承）。僅提供Bnua-N密封。壓力等級是125psi (9kg/cm2)。也
提供直式：OPW 3627VO。
OPW夾套旋轉接頭_OPW Jacketed Swivel Joints
所有OPW工程系統公司結構鋼或不銹鋼旋轉接頭都可以預定夾套。夾套旋轉接頭通常應用在必須保持相對高溫下的應用，例如瀝青、硫磺、蠟類和樹脂。OPW夾套旋轉接頭僅在彎管處是全鋼夾套，從旋轉接頭夾套彎管處導來的熱量可以給密封處提供足夠的溫度，那通常是隔熱區。高要求應用時，密封處也可以備上夾套。標準蒸汽接頭是3/4" FNPT。除了蒸汽，其他材質也可以經OPW夾套旋轉接頭來加熱或冷卻產品，例如石油、水、和醇等。
OPW Jacketed Swivel Joints
任何OPW工程系統制造的鋼或不銹鋼轉環均可訂購?qiáng)A套。夾套式旋轉閥通常用于必須保持相對高溫的應用場合，如瀝青、硫磺、蠟和樹脂。OPW夾套式旋轉閥僅在彎管部分采用全鋼夾套。旋轉接頭夾套式彎管的傳導熱提供了Suffi。充分加熱密封區域，通常是現場絕緣的。對于高度關鍵的應用，接頭的密封區域也可以加套。標準蒸汽接頭為3/4“FNPT。除蒸汽以外的介質也可以通過帶OPW夾套的旋轉閥重新循環，以加熱或冷卻產品，如油、水和乙二醇等。Any of OPW Engineered Systems fabricated steel or stainless steel swivels canbe ordered jacketed. Jacketed swivels are commonly used in applications where relatively high temperatures must be maintained, such as asphalt, sulfur, waxes,
and resins.OPW jacketed swivels feature full steel jackets on the elbow portions only.Conductive heat from the jacketed elbows of the swivel joint provides sufficient heat to the seal area, which is generally field-insulated. For applications considered highly critical, the seal area of the joint can also be jacketed. Standard steam connections are 3/4" FNPT.
Mediums other than steam can also be re-circulated through OPW jacketed swivels to heat or cool products, such as oil, water, and glycol, among others.
可選擇材質：：鋼和不銹鋼Steel & Stainless Steel, 鋁、球墨鑄鐵和銅Aluminum, Ductile Iron & Bronze

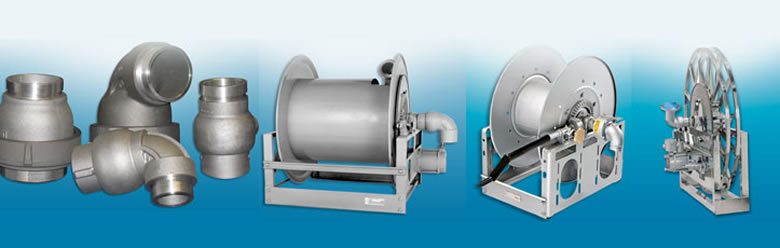

OPW Hose Reel Swivels
Swivel Styles
Style 20VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
2” FNPT x 2?” Victaulic
Style 30VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
2” FNPT x 2” Victaulic
Style 3627VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
3” FNPT x 3” Victaulic
Style 3637VO Swivel Joint
Aluminum Construction
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene
3” FNPT x 3” Victaulic
Style 30 Swivel Joint
Standard Materials: Carbon Steel, 316 Stainless Steel, Aluminum
Standard Seals: Buna, Fluorocarbon, PTFE, EPDM, Neoprene ?” to 12” sizes
FNPT, ANSI Flanged
Downloads
Style 20VO Swivel Joint
Style 30VO Swivel Joint
Style 3620VO Swivel Joint
Style 3627VO Swivel Joint
Style 37VO Swivel Joint
|
