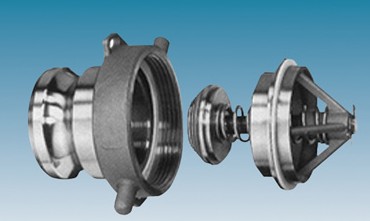

OPW 2173AVN | OPW 2173AVN油氣回收型干式快換接頭
OPW 2173AVN Vapor Recovery Dry Disconnect Coupling
OPW 2173AVN油氣回收型干式快換接頭能夠?yàn)轫敳康撞垦b卸的槽車提供方便的油氣回收方法。 OPW 2173AVN可安裝在槽車上的QRB閥門上，其所提供的不漏液聯接方式在發生翻車的情況下可將危險液體緊急抽空。The OPW 2173AVN Vapor Recovery Dry Disconnect Coupling provides easy access in recovering vapors for either top or bottom loading/unloading tank truck operations. The OPW 2173AVN installs onto the QRB valve on tank trailers and can provide a dry disconnect connection for emergency evacuation of hazardous liquids in the case of a roll-over.OPW 2173AVN油氣回收型干式快換接頭能夠?yàn)轫敳炕蛘叩撞垦b卸的槽車提供方便的油氣回收方法。OPW2173AVN可安裝在槽車的QRB閥門上，其所提供的不漏液聯接方式在發生翻車的情況下可將危險性液體緊急抽空。
OPW 2173AVN油氣回收型干式快換接頭
OPW 2173AVN Vapor Recovery Dry Disconnect Coupling
OPW 2173AVN油氣回收型干式快換接頭優點
- 閉路保護—在聯接/脫卸過程中氣相和液相的可靠密封，為操作人員和環境提供充分保護。專為具有較高蒸汽壓、易于快速氣化的VOC（揮發性有機化合物）物料的用途而設計。能將易揮發物料封閉在管線中，從而減少VOC物料輸送過程中的油氣損失
- 翻車保護—其低型面設計使聯接管件處在低于翻車平面的水平上，從而在發生翻車時將破壞降低到-低限度。符合IMO的型面尺寸要求
- 便于緊急抽空—提供的不漏液聯接方式在發生翻車的情況下可將危險性液體緊急抽空
- 清洗快捷方便—其設計結構便于拆卸，以方便定期進行的清洗工作
OPW 2173AVN油氣回收型干式快換接頭特性
- 油氣軟管聯接—2”(DN50)Kamvalok干式快換陰端接頭或D2000帶操縱桿的干式快換陽端接頭
- 無須改裝槽車—可以很方便地連接到原有的MC307、DOT407、MC312、和DOT412槽車拖車上
- 3”(DN80)直螺紋安裝—與2”(DN50)干式快換接頭的凸輪/滑槽聯接構件一起，形成與ORB閥門配合使用的-理想的3”*2”(DN80* DN50)接續裝置
OPW 2173AVN Vapor Recovery Dry Disconnect Coupling
OPW 2173AVN Series Vapor Recovery Fitting
The OPW 2173AVN Vapor Recovery Dry Disconnect Coupling provides easy access in recovering vapors for either top or bottom loading/unloading tank truck operations. The OPW 2173AVN installs onto the QRB valve on tank trailers and can provide a dry disconnect connection for emergency evacuation of hazardous liquids in the case of a roll-over.
性能參數：
- Vapor Hose Connection – 2” Kamvalok Dry Disconnect
- No trailer modifications required – Easy attachment to existing MC307, DOT407, MC312, and DOT412 trailers
- 3” straight thread mounting with 2” Kamvalok dry disconnect cam and groove connection makes the ideal 3” x 2” adaptor for QRB valves
- Can replace existing Clean-Out Caps for Closed Loop System
- Closed-Loop Protection – Helps protect people and the environment by providing a vapor and liquid tight seal during the connection/disconnection process specifically designed to contain VOC (Volatile Organic Compounds) products that have high vapor pressure that evaporates quickly. Contains fugitive emissions and transfers VOCs without vapor loss.
- Roll-Over Safety – Low profile design keeps the fitting below roll-over plane to minimize damage in the event of a roll-over. Meets IMO profile dimensions.
- Easy Emergency Evacuation – Provides a dry disconnect connection for emergency evacuation of hazardous liquids in case of roll-over
- Quick and Easy Cleaning – Designed for easy disassembly for routine cleaning
Kamvalok Dry Disconnect Couplings by OPW Engineered Systems
Because of its unique poppet action the OPW Kamvalok Dry Disconnect virtually eliminates spillage of any residual liquid contained within the line after disconnection. Kamvaloks are used at transfer points where product loss is unacceptable.
