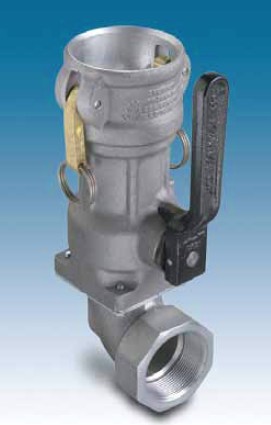

OPW Kamvalok 1700ESL 和1700ES系列輸送用接頭
OPW輸送系列的干式快換接頭主要用于輸送石油、溶劑和化學制品的采用車載泵送裝置的多隔室運輸槽車。OPW輸送用系列的干式快換接頭被公認為本行業的標準產品，主要用于輸送石油、溶劑和化學制品的采用車載泵送裝置的多隔室運輸槽車。
Kamvalok 1700ESL 和1700ES系列輸送用接頭
Kamvalok 1700ESL 和1700ES系列輸送用接頭特點
- 提供2”規格
- 鋁合金材質
- 可配或不配AutolokTM自鎖臂
- 配 有Snap-on主密封的提升閥密封缸。
- 簡單凸輪—滑槽設計，帶控制桿
- 全方位操作—陰端接頭可以連接到陽端接頭的任何方向
- 制造符合-高設計、材料和施工質量標準
Kamvalok 1700ESL 和1700ES系列輸送用接頭優點
- 防止跑料—有助于減少危險性物料輸送過程中因連接/脫卸而產生的跑料風險
- Autolok自鎖臂—配備的自動鎖定機械裝置可以提供額外的防護功能，連接時當發出清脆的咔噠聲時表明該鎖定裝置已就位。只需要拉動鎖緊環即可打開，解除鎖定。
- 全封閉回路裝卸操作功能—使用OPW 2173N油氣回收干式快換接頭，能夠?qū)⒂泻σ后w和氣相物料封閉在管線中，防止其進入環境中，從而保護人民免受傷害、財產受到損失。
- 雙重保護—OPW Kamvaloks提供從陽端接頭和陰端接頭兩個方向進行自動關閉切斷的功能。
- 使用方便—簡單的連接/脫卸設計和杠桿操作的內部提升閥結構確保了部件的自由動作和平穩操作。

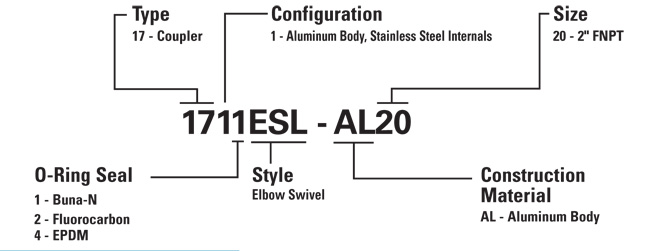

選購指南：
90°彎管/旋轉接頭
產品系列號 |
口徑規格、描述 |
1711ES-0200
|
2” 鋁合金, 縮醛塑料, Buna-N 密封 |
1712ES-0200 |
2” 鋁合金, 縮醛塑料, 氟橡膠密封 |
1714ES-0020 |
2” 鋁合金, 縮醛塑料, EPDM密封 |
 下面產品或應用都成功使用了Kamvalok接頭
| Chemical |
Application |
| Acetone |
Tank Cars |
| Acrylates |
In Plant |
Acrylic Acid
|
Tank Truck |
Acrylonitrile
|
Tank Cars |
Acrylonitrile, MMA, Butyl Acrylate
|
|
Allyl Chloride
|
|
Allyl Lites
|
|
Amines (Various)
|
Tank Truck
|
Anthranilic Acid (AA)
|
Tank Cars
|
Anthranilic Acid (AA)
|
Tank Truck
|
Automotive Paint
|
In Plant
|
Benzene
|
Tank Cars
|
Benzene
|
Tank Truck
|
Butyl Acrylate
|
Tank Trucks
|
Butyl Acrylate, Acrylic Acid, Acrylic Monomers
|
|
C5 Raffinate
|
Tank Truck
|
Crude Acetone
|
Tank Truck
|
Crude MBA
|
Tank Truck |
| CTLO (coal tar light oil) |
Tank Cars |
| Cumene |
Tank Truck |
| DCDP |
Tank Truck |
| Diesel Exhaust Fluid (DEF) |
Totes |
| Dow Therm |
Tank Trucks |
| Enserv |
Totes/trucks |
| Epichlorohydrin |
Tank Cars |
Ethelyne Oxide
|
Rail Car |
| Ethyl Acrylate |
Tank Cars |
| Ethyl Acrylate |
Tank Truck |
| Ethylene Oxide (EO) |
Tank Cars |
| Flex Caustic |
Tank Truck |
| Glycol (deicing fluids) |
Tank Trucks |
| Hydrogen Peroxide |
Rail Car |
| Isoprene |
Tank Truck |
| Isopropyl Alcohol |
Tank Truck |
Light Paralysis Oil
|
Tank Truck |
| LRO |
Tank Truck |
| Lubricating Oils |
Tank Trucks |
| Methanol |
Rail Car |
| Mixed Alcohol |
Tank Truck |
| Monochloroacetic Acid, 80% Solution (MCAA) |
|
| Nitirc Acid |
Tank Truck |
| Paralysis |
Tank Truck
|
| Peperzine |
Tank Truck |
| Piperylene |
Tank Truck |
| Polyol |
Rail Car |
Propylene
|
Tank Cars |
| Propylene Oxide (PO) |
Tank Truck |
| Propylene Oxide (PO) |
Rail Car |
| RTBA |
Tank Truck |
| Sour Gasoline |
Tank Cars |
| Spent Caustic |
Tank Truck |
| Styrene |
Tank Truck |
| Styrene |
Rail Car |
| Sulfuric Acid (H2SO4), virgin 96% |
Tank Truck |
Tebol 99
|
Tank Truck |
| Telene (tobacco herbicide) |
Totes/trucks |
| Telone II |
|
| Tert-Butyl Hydroperoxide (TBHP) |
Tank Truck |
| Trichlorobenzoic (TBA) Acetone |
Tank Truck |
| Trichlorobenzoic (TBA) Heavies |
Tank Truck |
| WFE Distillate |
Tank Truck |
| WFE Feed |
Tank Truck |
| WFE Heavies |
Tank Truck |
OPW Kamvalok 1700ESL & 1700ES Series Transportation Couplers
OPW Transport Series Dry Disconnect Couplings
OPW Transport Series Dry Disconnect Couplings are considered the standard of the industry for use on multi-compartment petroleum, solvent and chemical product delivery trucks with an on-board pumping unit.
性能參數：
Available in 2”
Aluminum material of construction
Offered with or without AutolokTM Locking Arms
Features Poppeted Seal Cylinder with Snap-on Nose Seal
Simple Cam and Groove Design with Lever Actuation
360° Orientation – coupler can be connected in any orientation onto the adaptor.
Manufactured in compliance with the highest quality standards of design, materials and construction.
Spill Protection - Helps to reduce the hazards involved in the connection/disconnection process of transferring hazardous materials.
Autolok? Locking Arms - Provide added protection with an automatic locking mechanism signaled by a positive click. Uncoupling requires only an easy tug on the lock release.
Provides For Total Closed-Loop Loading Capabilities - When used with the OPW 2173N Vapor Recovery Dry Disconnect coupling protects people and property from dangerous and potentially costly exposure by keeping hazardous liquids and vapors in-line and out of the environment.
Dual Protection - OPW Kamvaloks provide automatic closure from both directions - the coupler and the adaptor.
Ease of Use - The simple connection and disconnection design and lever actuated internal poppet configuration makes this the first choice for liquid transfer operations.
Kamvalok Dry Disconnect Couplings by OPW Engineered Systems
Because of its unique poppet action the OPW Kamvalok Dry Disconnect virtually eliminates spillage of any residual liquid contained within the line after disconnection. Kamvaloks are used at transfer points where product loss is unacceptable.
