OPW一次油氣回收接頭 OPW一次油氣回收自封接頭及蓋
OPW 1611AV 3"x4" Vapor Recovery Adaptor - Aluminum 1711T Vapor Recovery Cap
OPW油氣回收密封快速接頭

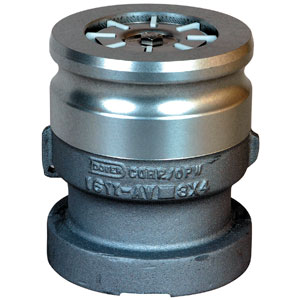

1611 Series Vapor Recovery Adaptors
OPW 1611AV 油氣回收密封快速接頭用于油氣回收管端口，具有自密封效果，只有使用OPW 633CV-AL4030連接才能頂開密封口，保持氣相管路連通。1611系列最大工作壓力10PSI，安裝尺寸3"。The OPW 1611AV and 1611AVB are poppeted adaptors, designed to mate with a vapor recovery elbow, for returning gasoline vapor to the tank truck during a fuel delivery to an underground tank.

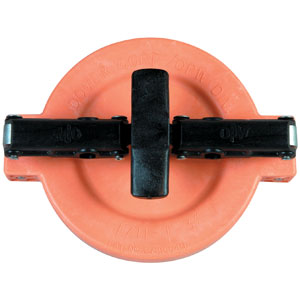

OPW 1711T油氣回收密封蓋
OPW 1711T油氣密封蓋用于OPW 1611AV，1611AVB，1611VR接頭，防止油氣揮發和水、灰塵和雜質進入快速接頭和進入油罐。1711T密封蓋用DURATUFF結構防止生銹。1711T可加鎖。
Ordering Specifications
Part No. |
Elbow Size |
Riser Thread |
Weight |
|
Description |
|
in. |
mm |
in. |
mm |
lbs. |
kg |
|
| 1611AV-1605 |
3 |
76 |
3 |
76 |
2.91 |
1.32 |
Clear Anodized Aluminum |
| 1611AV-1620 |
3 |
76 |
4 |
102 |
3.25 |
1.48 |
Clear Anodized Aluminum |
| 1611AVB-1625 |
3 |
76 |
4 |
102 |
7.97 |
3.62 |
Cast Bronze |
Dimensions
| Product Combinations |
H-Total Installed Height |
|
In. |
mm |
| 61VSA & 1711T |
6-3/8 |
162 |
| 61VSA & 1711LPC |
5-3/8 |
137 |
| 1611AV & 1711T |
6-1/4 |
159 |
| 1611AV & 1711LPC |
5-1/4 |
133 |
| 61SALP & 634TT |
4-3/8 |
111 |
| 61SALP & 634LPC |
4-7/8 |
124 |
| 633T & 634TT |
4-1/2 |
114 |
| 633T & 634LPC |
3-1/2 |
89 |
Replacement Parts
Key |
Part No. |
Description |
| 1 |
C02642M |
Bridge Guide |
| Not Shown |
H15294M |
Screw (3") (76mm) |
| 2 |
H04145M |
Gasket (3") (76mm)
Gasket (3" x 4")
(76 x 102mm) |
| H04150M |
| 3 |
H08989M |
Spring |
| 61VSA-KIT Complete Replacement Kit |
|
