OPW 1004D3-0402 API底部灌裝快換接頭 OPW 1004D3-0402干式分離閥
OPW API 1004D3 & 1004D4 干式分離閥 快換接頭
OPW 1004D3-0402 API Bottom Loading Coupler
OPW 1004D2 API快換接頭

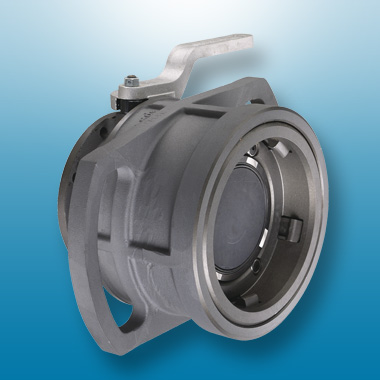

OPW工程系統公司開發的1004D2是標準的“無滴漏”底部灌裝用快換接頭，具有可靠地性能優點。1004D2可與所有符合API RP-1004要求的底部灌裝快換接頭配合使用，能明顯減少液體的泄漏損失。OPW 1004D3-0402干式分離閥。OPW 1004D3-0402 API底部灌裝快換接頭。API干式接頭(又稱干式閥、干式分離閥、下裝接頭)，主要應用于石油庫區底部密閉裝卸系統中鶴管與油罐車之間。接合快速，由于具有自封機構，基本可以做到接合與分離時無泄漏。是油氣回收的重要環節設備。手動開啟機構。OPW API 1004D2/1005E API Bottom Loading Coupler (No Longer Available, Replaced by 1004D3 & 1004D4)
The 1004D2/1005E API Bottom Loading Coupler from OPW Engineered Systems combines ease of use with heavy-duty construction for unmatched dependability. An advanced sealing design, using one seal instead of two, provides superior sealing characteristics and makes replacement quick and simple. Its heavy-duty aluminum and stainless steel construction has been proven at terminals around the globe.

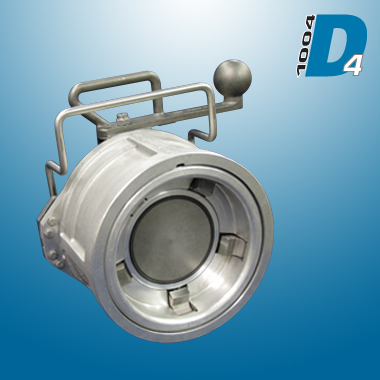

OPW API 1004D4 API Bottom Loading Coupler
技術資料下載
優點
-為高效輸送所有各種燃油而設計—標準配備高性能的Viton密封，具有優異的耐磨性和耐油性能。也可以提供其他材質的密封，包括Buna N、Teflon、Chemraz、和Kalraz等
-設計結構不會在裝車臺上造成混亂—其新型、便于自我對心的5-凸輪結構能確保與快速接頭形成緊密的密封，抵抗側面受力的影響
-消除鼻型密封被吹破的危險—采用倒角方式，加強密封效果
-密封套件—包括更換1004D2底部灌裝快換接頭密封所需的所有部件。可以提供高性能的Teflon、Buna-N和其他密封材質
-Conversion ksts

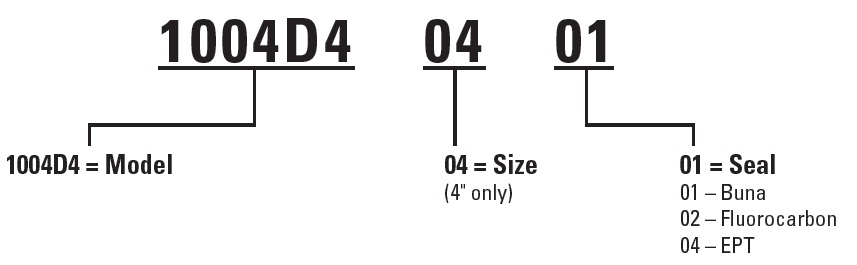

Ordering Guide
Units (1004D4)
Seal Kits
OPW 1004D4SRK Seal Replacement Kits include everything needed to change the seals in the 1004D4 API Coupler.
Seal Replacement Kits are always recommended as spare parts.
Seal Material |
Coupler Model # |
Nose Seal (16) |
Stuff Box Seal (26) |
Stuff Box Seal (27) |
Cylinder Seal (15) |
Temp. Rating |
| Buna-N 1500 |
1004D4-0401 |
H30482M |
H20129M |
H31705M |
H30258M |
-20°F–212°F
(-29°C–100°C) |
| Fluorocarbon |
1004D4-0402 |
H30483M |
H20175M |
H31706M |
H30217M |
-20°F–400°F
(-29°C–204°C) |
| EPT E 692 |
1004D4-0404 |
H31957M |
H20176M |
H31707M |
H31956M |
-50°F–225°F
(-46°C–107°C) |
# |

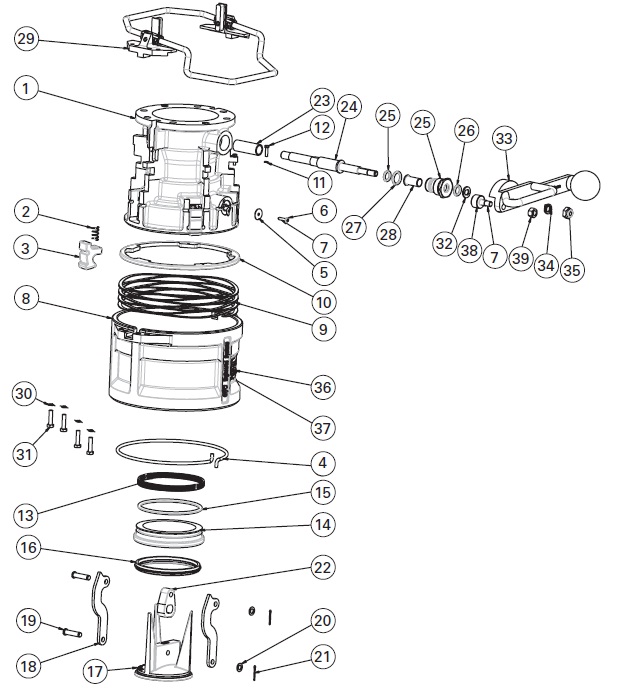

Description |
Qty |
Material |
Part # |
|
| 1 |
Body |
1 |
ASTM B26 Anodized (Aluminum A356-T6) |
E20065AH |
|
| 2 |
Spring |
5 |
Type 302 Stainless Steel |
H32170M |
|
| 3 |
Cam |
5 |
ASTM A351 CF8M (316 SST) |
9C21327EW |
|
| 4 |
Cam Retaining Ring |
1 |
ASTM A693 (17-7 PH SST, H900 Hardened |
H32225M |
|
| 5 |
Fender Washer |
1 |
316 Stainless Steel |
H32252M |
|
| 6 |
Sheet Metal Screw |
1 |
Steel, Zinc Plated |
H32251M |
|
| 7 |
Loctite |
As Required |
Threaded Locking Compound |
Type 242 |
|
| 8 |
Sleeve |
1 |
ASTM B26 Anodized (Aluminum A356-T6) |
E20063AH |
|
| 9 |
Jump on Wave Spring |
1 |
ASTM A693 (17-7 PH SST, H900 Hardened) |
H32055M |
|
| 10 |
Wave Spring Support Ring |
1 |
304 SST |
D20205RE |
|
| 11 |
M4 Spring Lock Washer |
3 |
316 SST |
H32082M |
|
| 12 |
M4 X .7mm by 16mm Hex Cap Screw |
3 |
316 SST |
H32081M |
|
| 13 |
Wave Spring |
1 |
ASTM A693 (17-7 PH SST, H900 Hardened) |
H31091M |
|
| 14 |
Cylinder |
1 |
ASTM SB241 (Aluminum 6061-T6) |
C21283AH |
|
| 15 |
Cylinder O-Ring |
1 |
See Seal Options Chart |
- |
* |
| 16 |
Nose Seal, API CPLR, Fluorocarbon |
1 |
See Seal Options Chart |
- |
* |
| 17 |
Poppet |
1 |
ASTM B26 Anodized (Aluminum A356-T6) |
D20069AH |
|
| 18 |
High Pressure Link |
2 |
410 SST Hardened |
H30552M |
|
| 19 |
Clevis Pin |
2 |
ASTM SA564 (17-4 PH SST, H900 Hardended) |
H30610RE |
|
| 20 |
Washer, Flat, SST, 5/16 |
2 |
18-8 SST |
H30206M |
|
| 21 |
Cotter Pin |
2 |
SST |
H30205M |
|
| 22 |
Drive Link |
1 |
ASTM A351 CF-8M (316 SST) |
C21255EW |
|
| 23 |
Tube Spacer, API, SST |
1 |
316 SST |
C21254RE |
|
| 24 |
Handle Shaft |
1 |
ASTM A564 (13-8, Condition RH 950, RC 48) |
C21290RE |
|
| 25 |
Stuff Box, API and LOK, SST |
1 |
ASTM A479 316 (316L) |
C20812RE |
|
| 26 |
O-Ring, Fluorocarbon |
2 |
See Seal Options Chart |
- |
* |
| 27 |
O-Ring, Fluorocarbon |
1 |
See Seal Options Chart |
- |
* |
| 28 |
Sleeve Bearing |
1 |
Teflon/Graphite |
H32163M |
* |
| 29 |
Recock Handle Assembly |
1 |
SST |
D20217 |
|
| 30 |
M6 Spring Lock Washer |
8 |
316 SST |
H32084M |
|
| 31 |
M6 X 1.0mm by 25mm Hex Cap Screw |
8 |
316 SST |
H32083M |
|
| 32 |
Load Distribution Washer |
1 |
.75 Inch Stock AISI 410 SST Bar Stock |
H32246RE |
|
| 33 |
Operating Handle |
1 |
ASTM A351CF8M (316 SST) |
E20070EW |
|
| 34 |
Washer, Nord-lock |
1 |
SST ANSI 316 |
H31920M |
|
| 35 |
Distorted Thread Nut, 10mm |
1 |
Steel, Zinc Plated M10 x 1.5mm |
H32256M |
|
| 36 |
Nameplate |
1 |
0.12 Satin |
|
|
| 37 |
6-20 x 3/16" Long Thread Screw |
4 |
Type B, Steel, Zinc Plated |
H32149M |
|
| 38 |
Roller Bearing |
1 |
Steel Construction, Sealed Bearings |
H30219M |
|
| 39 |
Nut, Hex, CST, ZP, 3/8"-24 |
1 |
ZP CST |
H30220M |
|
*Items included in seal replacement kits (1004D4SRK). 4" API 下裝干式接頭 | API 干式接頭(又稱干式閥、干式分離閥、下裝接頭) | OPW鶴管、輸油臂、API接頭 干式閥,OPW鶴管、輸油臂、API接頭 干式閥 | API鶴管 底部裝車鶴管 干式分離閥鶴管、干式分離閥、進口干式分離閥、下裝鶴管干式閥、美國干式分離閥、干式閥泄漏量、美國OPW干式分離閥、API干式閥型號、Api干式閥接口、OPW鶴管、輸油臂、API接頭 干式閥_OPW | API干式接頭(底裝鶴管用干式分離閥、下裝接頭) | 干式接頭,下裝接頭,API干式分離閥,API卸油閥,卸油閥,進口干式接頭 、 底裝鶴管 API干式分離閥鶴管| API干式接頭(底裝鶴管用干式分離閥、下裝接頭) | OPW API干式接頭(底裝鶴管用干式分離閥、下裝接頭) OPW API 干式分離閥
|
